T-SC Connectors
Mechanical Characteristics
Durability (mating cycles): ≥1000
Hex crimp size for strain relief: 4.52 x 10 mm
Strain relief: ≥100 N
Material: adapor split sleeve: Zirkonia ceramic or phosphor bronze
Material: connector body: copper alloy, nickel-plated
Material: plug housing, boot, dust caps: thermoplastic, flame retardant, non halogen
Material: adaptor housing: thermoplastic, flame retardant, non halogen, or zinc diecast, nickel-plated
Material: retaining clip (adaptor): stainless steel
Climatic Characteristics
Operating temperature: -20°...80° C
Storage temperature: -40°...90° C
Optical Characteristics
Insertion loss: Plug (factory assembly): Multimode: max. 0.4 dB¹; Singlemode/Singlemode APC: max. 0.5 dB¹; POF: 1.5 dB; PCF: 1.0 dB
Insertion loss: Adaptor: Multimode/Singlemode: max. 0.2 dB¹; Singlemode APC: 0.5 dB¹
Return loss: plug (factory assembly): Multimode: min. 30 dB²; Singlemode: min. 40 dB²; Singlemode APC: min. 60 dB²
Telegartner: Clamp for STX SC-D Connector HCS
Telegartner: Clamp for STX SC-D Connector HCS,
spacing acc. to SC Duplex, turquoise (packed per 10)
Price on request
Telegartner: Clamp for SC Connector
Telegartner: Clamp for SC Connector,
spacing acc. to SC Duplex, red (packed per 10)
Price on request
Telegartner: Clamp for SC connector- beige
Telegartner: Clamp for SC connector- beige,
Clamp for SC connector (spacing acc. to SC Duplex), beige (packed per 10)
Price on request
Telegartner: Clamp for SC connector- black
Telegartner: Clamp for SC connector- black,
Clamp for SC connector (spacing acc. to SC Duplex), black (packed per 10)
Price on request
Telegartner: Clamp for SC connector- green
Telegartner: Clamp for SC connector- green,
VERbindungsklammer für SC-Stecker (Abstand wie SC-Duplex), grün (packed per 1)
Price on request
Telegartner: Clamp for SC connector-blue
Telegartner: Clamp for SC connector-blue,
Clamp for SC connector (spacing acc. to SC Duplex), blue (packed per 10)
Price on request
Telegartner: Clamp for STX SC-D- connector POF
Telegartner: Clamp for STX SC-D- connector POF,
spacing acc. to SC Duplex, yellow (packed per 10)
Price on request
Telegartner: Dust cover
Telegartner: Dust cover,
self-closing, for SC duplex adaptor, blue
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode and Singlemode, Ceramic sleeve, Plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, blue (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode, Phosphorous bronze sleeve, Plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, beige (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode, Phosphorous bronze sleeve, Plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, black (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode, Phosphorous bronze sleeve, Plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, turquoise (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode, ceramic sleeve, plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, turquoise (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode and Singlemode, Ceramic sleeve, metal housing, incl. tapping screws, Snap-in or screw mounting, Z77, metallic bright (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode, ceramic sleeve, plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, black (packed per 1)
Price on request
Telegartner: SC Adaptor
Telegartner: SC Adaptor,
Multimode, Ceramic sleeve, plastic housing, incl. tapping screws, Snap-in or screw mounting, Z77, beige (packed per 1)
Price on request

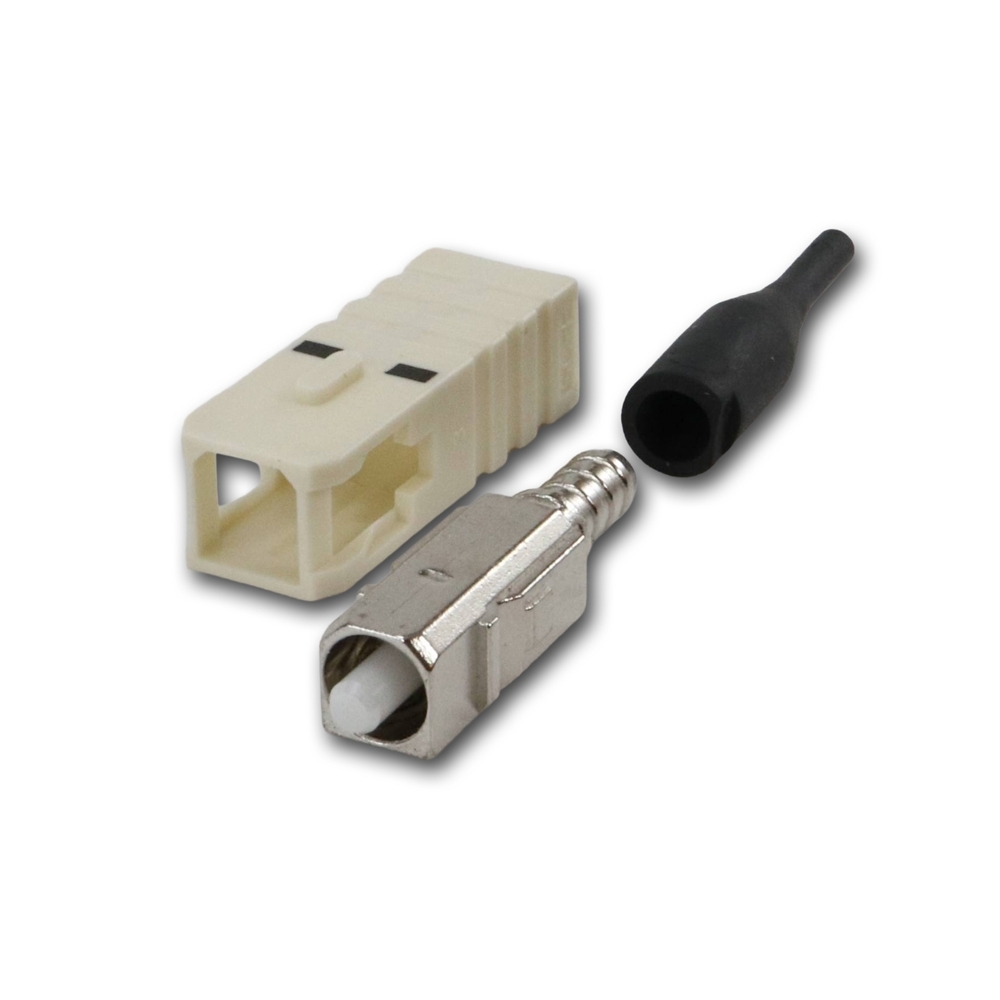

Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125, G62,5/125, for fibres with secondary coating Ø 0,9 mm, beige (packed per 1)
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125 OM4, for cable Ø 1,8 - 2,2 mm, black
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125, for fibres with secondary coating Ø 0,9 mm, beige (packed per 1)
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125 OM4, for fibers with secondary coating Ø 0,9 mm, black
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125 OM3, for cables Ø 2.0mm, beige (packed per ??)
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125, G62,5/125 for cables Ø 2,0 mm, blue (packed per 1)
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
Fiber type G50/125 OM4, for cable Ø 2,6 - 3,2 mm, black
Price on request
Telegartner: SC Connector Multimode, ceramic
Telegartner: SC Connector Multimode, ceramic,
G50/125, G62,5/125, for cables Ø 2,0 mm, beige (packed per ??)
Price on request
