LWL MPO/MTP Verkabelungs-System

In order to offer users the migration path from 10 Gbit/s to 40 Gbit/s the Telegärtner MPO/MTP® product family refers to polarity A. The channel termination A/B is done by fiber optic duplex patch cords on one side of the link at the FanOut modules. The Telegärtner MPO/MTP® cabling system, due to its modularity, offers installers and operators reduced time & effort for installations, modification and maintenance of a structured communication cabling for today´s and future demands of data centers (acc. to EN50173-5:2007 and ISO/IEC 24764:2010). The MPO/MTP® connector, specified and standardized in IEC 61754-7 and TIA/EIA 604-5, beside the LC fiber optic interface is the first choice for ITS (Information Telecomunication System) in tomorrow‘s bandwidth-hungry, high speed commercial buildings and data centers. It can be either used for parallel optics applications such as Infiniband with data rates up to 120 Gb/s and for the upcoming 40 Gb/s and 100 Gb/s Ethernet protocols via Multimode OM3, OM4 and OS2 fiber. Similar to the well-known MT-RJ connector, the MPO/MTP® houses several fibers in one single high-precision ferrule that can be PC or APC polished with a typical insertion loss of 0.25 dB, return loss of >60 dB for Singlemode and insertion loss 0.2 dB return loss >30 dB for Multimode.

MPO/MTP Patchcord

MPO/MTP Harness

MPO/MTP FanOut Module

MPO/MTP Module Carrier

19" LWL Rangierverteiler BASIS V mit MPO/MTP® Kupplungen

Telegärtner: MPO patch cord

Telegärtner: MPO patch cord

Telegärtner: MPO patch cord, MPO PC female patch cable, violet, G50/125 OM4, 3.0 m

Price on request

Telegartner: MPO Patch Cord

Telegartner: MPO Patch Cord

Telegartner: MPO Patch Cord, MPO PC female patch cord, violet, G50/125 OM4, 5,0 m

Price on request

Telegärtner: MPO patch cord

Telegärtner: MPO patch cord

Telegärtner: MPO patch cord, turquoise, 50/125 OM3, 70,0m

Price on request

Telegärtner: MPO patch cord

Telegärtner: MPO patch cord

Telegärtner: MPO patch cord, violet, 50/125 OM4, 70,0m

Price on request

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel, beige, G50/125 OM2, 10 m

Price on request

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Price on request

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Price on request

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Price on request

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Price on request

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Telegartner: MPO Patch Kabel

Price on request

Telegartner: MPO PC female Patchkabel

Telegartner: MPO PC female Patchkabel

Telegartner: MPO PC female Patchkabel, türkis, G50/125 OM3, 80 m

Price on request

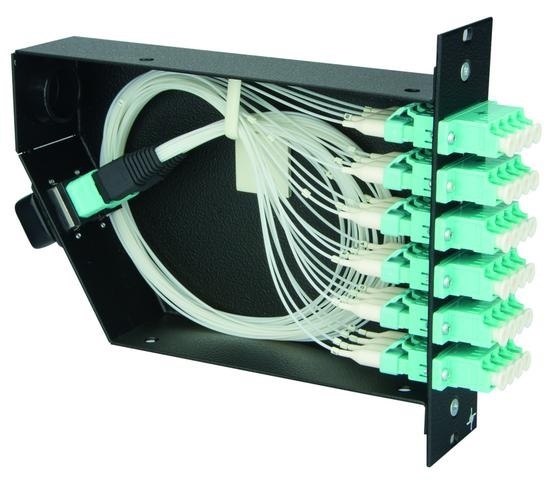

Telegärtner: MPO/MTP PC FanOut Modul OM2

Telegärtner: MPO/MTP PC FanOut Modul OM2

Telegärtner: MPO/MTP PC FanOut Modul OM2, 6x LC Quad-Kupplung; 24x LC/PC FanOut

Price on request

Telegärtner: MPO/MTP PC FanOut Modul OM3

Telegärtner: MPO/MTP PC FanOut Modul OM3

Telegärtner: MPO/MTP PC FanOut Modul OM3, 6x LC Quad-Kupplung; 24x LC/PC FanOut

Price on request

Telegartner: MPO/MTP PC FanOut Modul OS2

Telegartner: MPO/MTP PC FanOut Modul OS2

Telegartner: MPO/MTP PC FanOut Modul OS2, 6x LC/ Quad; 24x LC/PC FanOut

Price on request

Telegartner: MPO/MTP PC FanOut Modul OS2

Telegartner: MPO/MTP PC FanOut Modul OS2

Telegartner: MPO/MTP PC FanOut Modul OS2, 6x LC/ Quad; 24x LC/APC FanOut

Price on request

Telegartner: MPO/MTP® PC FanOut Modul OM3

Telegartner: MPO/MTP® PC FanOut Modul OM3

Telegartner: MPO/MTP® PC FanOut Modul OM3, 1. Side: 1x MPO PC, 2. Side: 6x LC Duplex jack; 12x LC/PC FanOut G50/125 OM3 (VE 1)

Price on request
