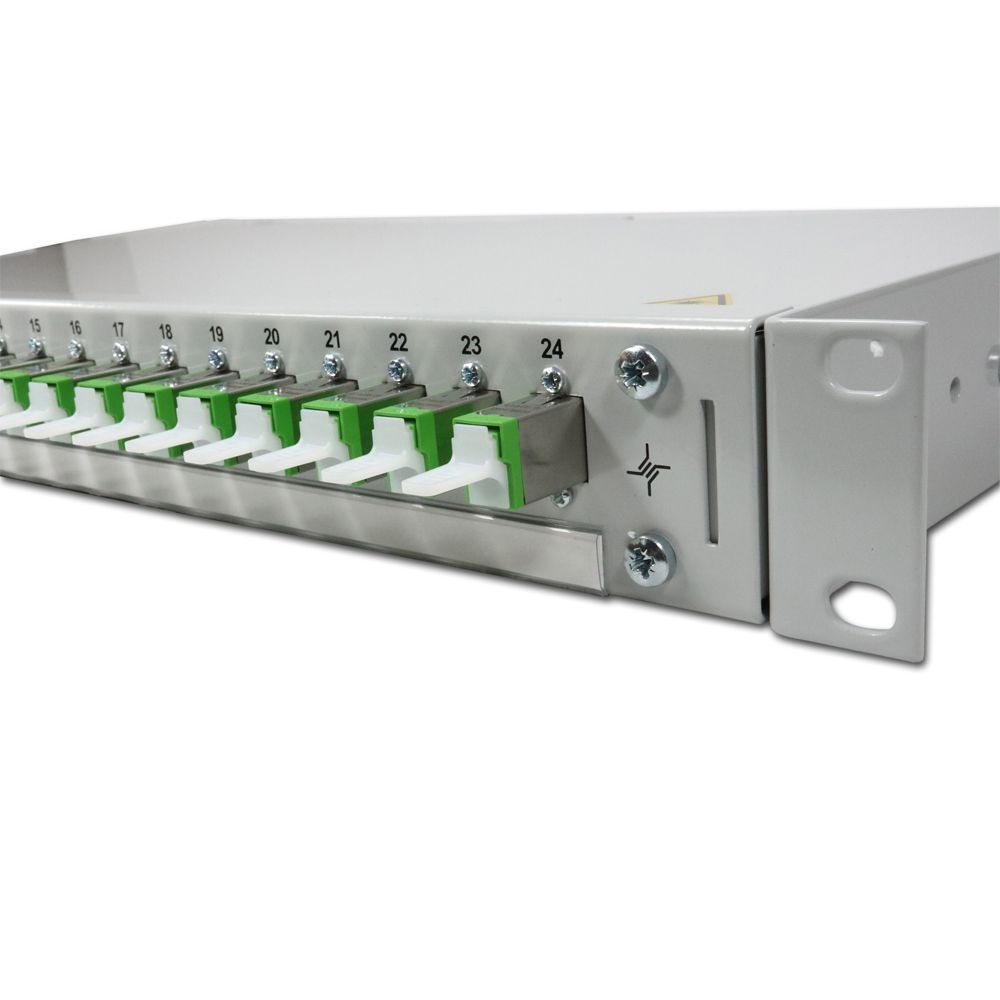

19" FO Patch Panel BASIS V
Product description
BASIS V allows installation of up to 4 incoming multifibre cables with total 144 fibres maximum and distribution of them via up to 4 splice cassettes. Using two fixing brackets the panel may be also installed in the rack at 50 mm backward displacement from the rack front.
Scope of delivery
Housing, front plate, 1 cable gland for 9-13 mm, 1 cover for M25 hole, 1 splice cassette with integarated splice holder for 12 fibres each, cover for splice cassette, adaptors with ceramic sleeve and pigtails with ceramic ferrule connectors see table, completely assembled
Mechanical Characteristics
Housing: sheet steel 1 mm, powder-laminated, light grey RAL 7035
Front plates: sheet aluminum 1,5 mm, powder-laminated, light grey RAL 7035, port no. imprinted, marking strip with plastic cover optional
Cable entries: M25 for 6-20 mm cable diameter in 4 steps
Panel piercings: for ST, SC, SC-Duplex, FDDI (MIC), E2000, E2000 Compact, MT-RJ female, MT-RJ- adaptor, LC Duplex, DIN, FC/PC, F-SMA
Dimensions in mm (1 HU): width: 482
Dimensions in mm (1 HU): height: 44
Dimensions in mm (1 HU): depth: 265
Dimensions in mm (2 HU): width: 482
Dimensions in mm (2 HU): height: 88
Dimensions in mm (2 HU): depth: 265
Dimensions in mm (3 HU): width: 482
Dimensions in mm (3 HU): height: 132
Dimensions in mm (3 HU): depth: 265
Telegartner: 19'' FO Patch Panel BASIS V
Telegartner: 19'' FO Patch Panel BASIS V,
19", 1 HU, 24xT-ST adaptor, ceramic sleeve, metal housing, 2x Splice cassettes (packed per 1)
Price on request
Telegartner: 19'' FO Patch Panel BASIS V
Telegartner: 19'' FO Patch Panel BASIS V,
19", 1 HU, 12xT-ST adaptor, ceramic sleeve, metal housing, 1x Splice cassettes (packed per 1)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 6xLC Duplex adaptor, phosphor bronze sleeve, plastic housing; 12x 50/125 OM3, 2,00m, LC fibre pigtails; coloured, stripped for splicing; colour: beige
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 6xT-SC Duplex adaptor, ceramic sleeve, plastic housing; 12x 9/125, OS1, 2,00m, T-SC fibre pigtails, coloured, stripped for splicing, colour: blue (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xT-SC adaptor, ceramic sleeve, plastic housing; 24x 9/125, OS1, T-SC fibre pigtails; coloured, stripped for splicing, colour: blue (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xLC Duplex adaptor, phosphor bronze sleeve, plastic housing; 48x 50/125 OM2, 2,00m, LC fibre pigtails; coloured, stripped for splicing, colour: beige (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 12xT-SC adaptor, ceramic sleeve, plastiv housing; 12x 50/125, OM3, 2,00m, T-SC fibre pigtails, coloured, stripped for splicing, colour: turquoise (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xSC Duplex adaptor, ceramic sleeve, plastiv housing; 48x 50/125, OM2, 2,00m, T-SC fibre pigtails; coloured, stripped for splicing, colour: beige (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 12xLC Duplex adaptor, phosphor bronze sleeve, plastic housing; 24x 50/125 OM3, 2,00m, LC fibre pigtails; coloured, stripped for splicing, colour: turquoise (packed per 1)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 6xLC Duplex adaptor, phosphor bronze sleeve, plastic housing; 12x 50/125 OM2, 2,00m, LC fibre pigtails; coloured, stripped for splicing; colour: beige
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
Telegartner: 19'' FO Patch Panel Housing BASIS V
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 12xSC Duplex adaptor, ceramic sleeve, plastic housing; 12x 9/125, OS2, 2,00m, SC fibre pigtails; coloured, stripped for splicing, colour: blue (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xT-SC Duplex adaptor, ceramic sleeve, plastic housing; 48x 9/125, OS2, 2,00m, T-SC fibre pigtails; coloured, stripped for splicing, colour: blue (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xT-ST adaptor, ceramic sleeve, metal housing; 24x 50/125, OM3, 2,00m, T-ST fibre pigtails; coloured, stripped for splicing, colour: metal (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 12xT-SC-Duplex adaptor, ceramic sleeve, plastic housing; 24x 50/125, OM2, 2,00m, T-SC fibre pigtails; coloured, stripped for splicing, colour: beige (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xST/SC Duplex adaptor, ceramic sleeve, plastic housing; 48x 50/125 OM3, 2,00m, T-SC fibre pigtails; coloured, stripped for splicing, colour: turquoise (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 6xLC Duplex adaptor, ceramic sleeve, plastic housing; 12x 9/125 OS2, 2,00m, LC fibre pigtails; coloured, stripped for splicing; colour: blue
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xE2000 adaptor, ceramic sleeve, plastic housing; 24x 50/125, OM3, 2,00m E2000 fibre pigtails; coloured, stripped for splicing; colour: black/orange (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xT-ST adaptor, ceramic sleeve, metal housing; 24x 9/125, OS1, 2,00m, T-ST fibre pigtails; coloured, stripped for splicing, colour: metal (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xST/SC-Duplex adaptor, ceramic sleeve, plastic housing; 48x 9/125 OS1, 2,00m, T-ST fibre pigtails; coloured, stripped for splicing, colour: blue (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 12xT-ST adaptor, ceramic sleeve, metal housing; 12x 50/125, OM3, 2,00m, T-ST fibre pigtails; coloured, stripped for splicing, colour: metal (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 6xT-SC-Duplex adaptor, ceramic sleeve, plastic housing; 12x 50/125, OM2, 2,00m, T-SC fibre pigtails; coloured, stripped for splicing, colour: beige (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in), 12xT-ST adaptor; 12x 9/125, OS1, 2,00m T-ST fibre pigtails; coloured, stripped for splicing, colour: metal (packed per ??)
Price on request
Telegartner: 19'' FO Patch Panel Housing BASIS V
Telegartner: 19'' FO Patch Panel Housing BASIS V,
with assembled adaptors and pigtails (connectors plugged-in); 24xE2000 adaptor, ceramic sleeve, plastic housing; 24x 50/125, OM2, 2,00m E2000 fibre pigtails; coloured, stripped for splicing; colour: black/orange (packed per ??)
Price on request
